Nalgonda District · Telangana · Est. 2016
Quartz & silica sand,mined and gradedon our own lease.
A vertically integrated quartz and silica sand producer — own mining lease, own crushing and screening plant, own dispatch fleet. From 1–2 mm coarse aggregate to 150 mesh fines, certified batch by batch.
- Plant status
- Running · --:--:-- IST
- Typical SiO2
- 85–92%
- Graded range
- 1–2 mm → 150 mesh
- Despatch
- 10 own trucks
- Coarse Graded Sand · 1 – 2 mm
- Medium-Coarse Sand · 12 – 24 mesh
- Medium Sand · 18 – 36 mesh
- General Purpose Sand · 16 – 100 mesh
- Fine Sand · 30 – 150 mesh
- Custom Blended Gradation · To specification
- Glass Manufacturing
- Construction Chemicals
- Foundry & Metal Casting
- Industrial & Chemical Processing
Why PSV exists
Most silica in this market passes through at least one trader before it reaches you. Ours doesn't. We own the lease, the plant and the trucks — so the material we certify is exactly the material we load.
- Years operating
- 10+Years operatingSince 2016
- MT / year capacity
- 1,20,000MT / year capacityRunning 24/7
- Oxides per assay
- 12Oxides per assayICP-OES, third party
- Trucks, own fleet
- 10Trucks, own fleetNo subcontracted haulage
- States supplied
- 7States suppliedSouth & Central India
What that means for you
Control of the chain,end to end.
Every difference below follows from one structural fact: there is no intermediary between our deposit and your intake.
Vertically integrated
Our own mining lease and our own crushing and screening plant. Nothing is bought in and re-badged — the material in the truck is material we made.
Certified per batch
Chemistry assayed by an independent accredited laboratory. The certificate is issued against the batch you are sent, not a sample from last year.
The full size range
One supplier from 1–2 mm coarse aggregate down to 150 mesh fines, plus blended distributions to a curve you specify.
Our own fleet
Ten company-owned trucks. Despatch scheduling is ours to control, which is why we can commit to a date and hold it.
The chain of custody
Mine face to despatch, under one roof.

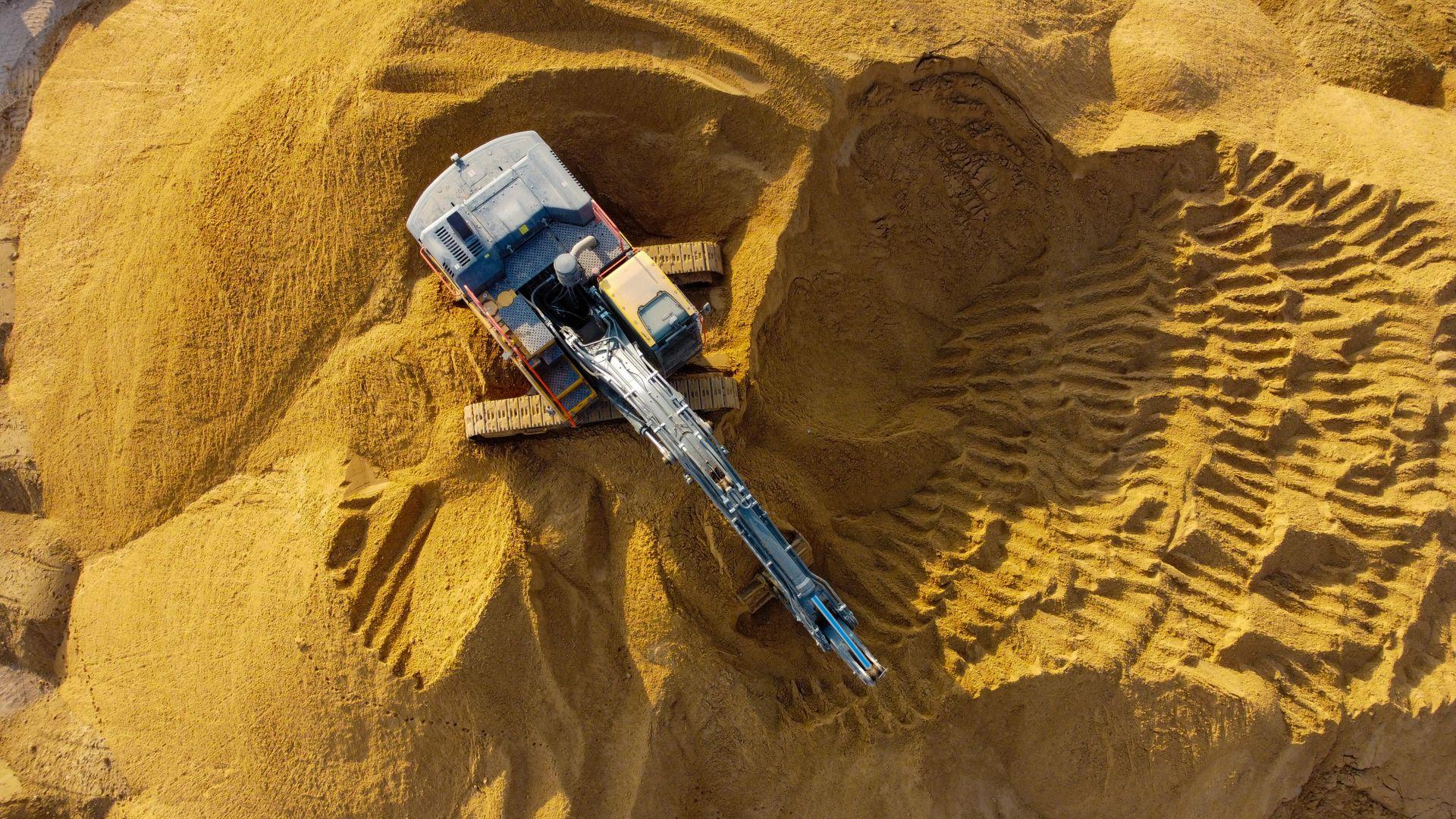

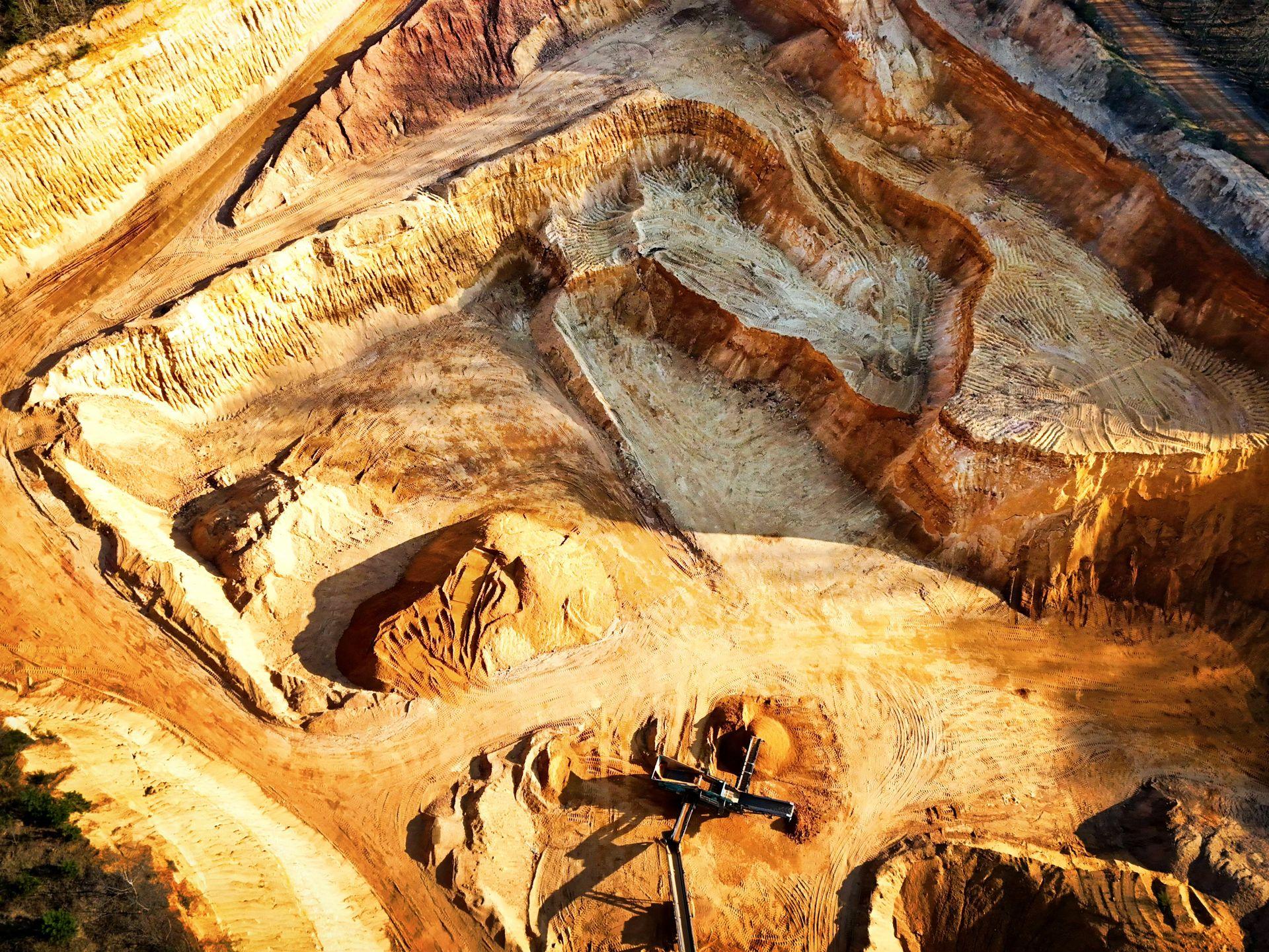

01Run of mineExtraction
Quartz ore drawn bench by bench from the company-held lease at Chakalisherpally, Nalgonda.
- Lease
- Own, Nalgonda
- Method
- Benched open pit

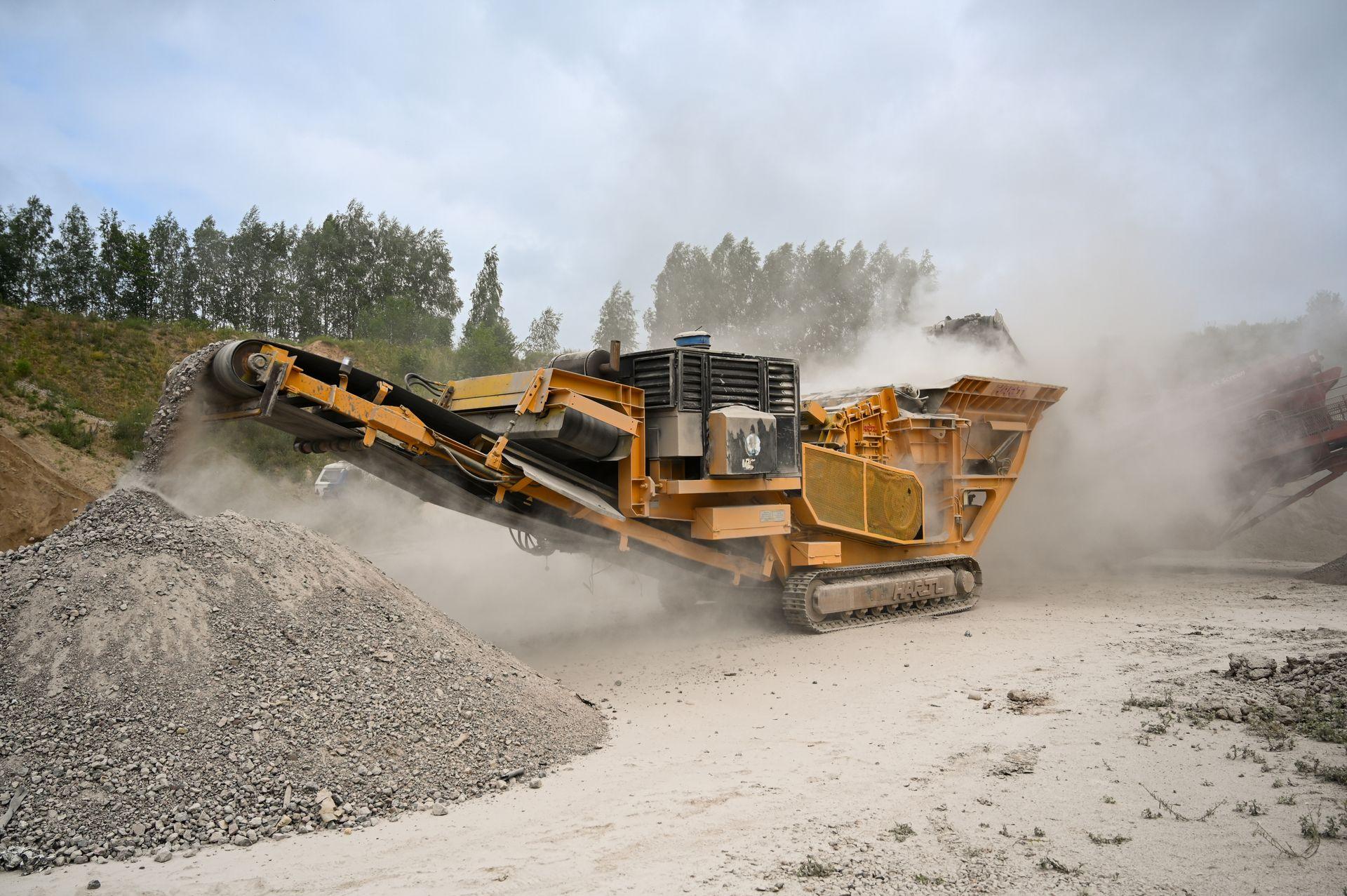

02Primary reductionCrushing
A grizzly feeder strips oversize ahead of the 48″ × 9″ jaw crusher for primary reduction.
- Jaw crusher
- 40–50 TPH
- Feed
- 12′ × 3′ grizzly

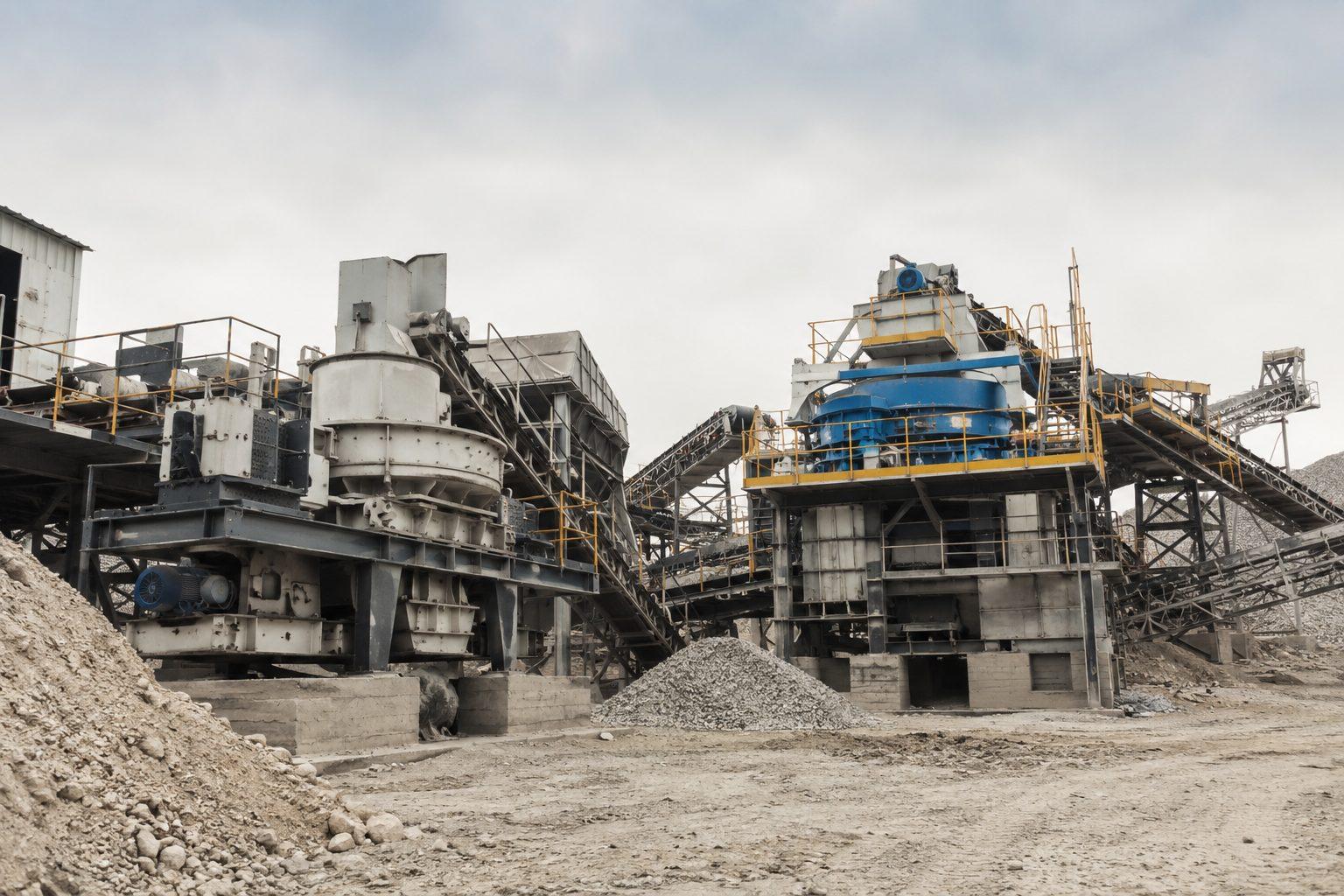

031–2 mm to 30 meshGrading

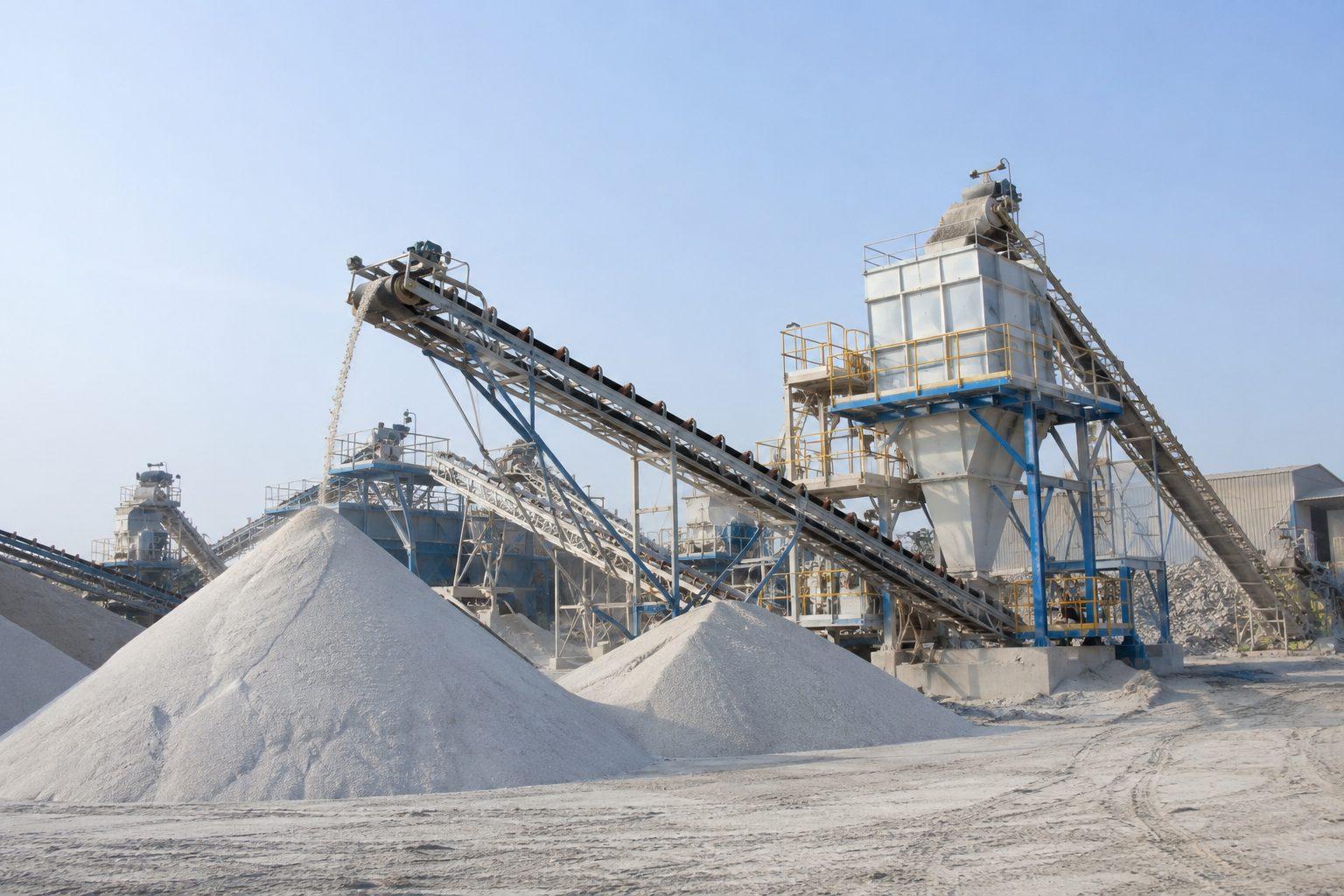

Horizontal and vertical shaft impactors reduce and shape the grain before four-way vibratory classification.
- Impactors
- HSI + VSI
- Screens
- 4 decks
0430–150 meshMilling to spec
A 12′ × 5′ high-frequency screen separates the fines and cuts to the band a buyer specifies.
- Finest cut
- 150 mesh
- Blends
- To your curve
05Certified per batchDespatch
Sieve-checked, certified per batch and loaded at the plant onto our own fleet — jumbo bag or bulk.
- Fleet
- 10 own trucks
- Packing
- 500 kg bags / bulk
Products
The graded range,on one axis.
Every grade is screened from the same lease on the same circuit, so the chemistry does not change when the cut does. Hover a band — or the axis — to read it.
Quality
Verifiable,not asserted.
Chemistry is determined by an independent accredited laboratory using ICP-OES against IS 1917 (Parts 1–3). We publish the certificate rather than a claim.
- Inline sampling from the screening circuit
- Sieve analysis before every release
- Certificate of analysis with every despatch
Representative certified batch
ICP-OES · IS 1917 (Parts 1–3)- Fe2O3Iron oxide
- 0.18%
- Al2O3Aluminium oxide
- 0.40%
- CaOCalcium oxide
- 0.06%
- MgOMagnesium oxide
- 0.03%
- LOILoss on ignition
- 0.10%
0%Trace oxide scale0.5%
Figures from a single third-party certified sample. They are not a guaranteed specification for every despatch — each order is certified on its own batch.
Industries
Where it goes.
Glass Manufacturing
Raw material input for container and specialty glass.
Fe₂O₃ content
Construction Chemicals
Filler and graded aggregate for adhesives, mortars and dry-mix.
Gradation consistency
Foundry & Metal Casting
Moulding and core sand across the coarse and medium bands.
Grain size distribution / AFS
Industrial & Chemical Processing
General-purpose graded and blended sand for formulation use.
Application-specific
Logistics
Loaded at the plant.Delivered by us.
Because the fleet is ours, a delivery date is a commitment we control — not a request we pass to a transporter.
| Destination | Road km | Transit |
|---|---|---|
| HyderabadTelangana | ~75 | Same day |
| VijayawadaAndhra Pradesh | ~210 | 1 day |
| VisakhapatnamAndhra Pradesh | ~560 | 2 days |
| NagpurMaharashtra | ~520 | 2 days |
| PuneMaharashtra | ~640 | 2 days |
| BengaluruKarnataka | ~600 | 2 days |
| ChennaiTamil Nadu | ~650 | 2 days |
Indicative door-to-door times on our own fleet, loaded at the plant. Confirmed against your delivery window at order.
Sustainability
We intend to leavethe land working.
Progressive reclamation, recirculated water and wet dust suppression are how the plant runs today — not a closure plan.
- Worked benches progressively reclaimed
- 6.2 haWorked benches progressively reclaimed
- Process water recirculated
- 68%Process water recirculated
- Sprinkler points on haul roads and transfer points
- 24Sprinkler points on haul roads and transfer points
- Workforce hired from surrounding villages
- 80%Workforce hired from surrounding villages
Enquiries · reply within one business day
Need a specific gradation?
Send us a target sieve curve and chemistry limits. We will tell you plainly whether we can hold it, and quote against it if we can.
Request a quote
